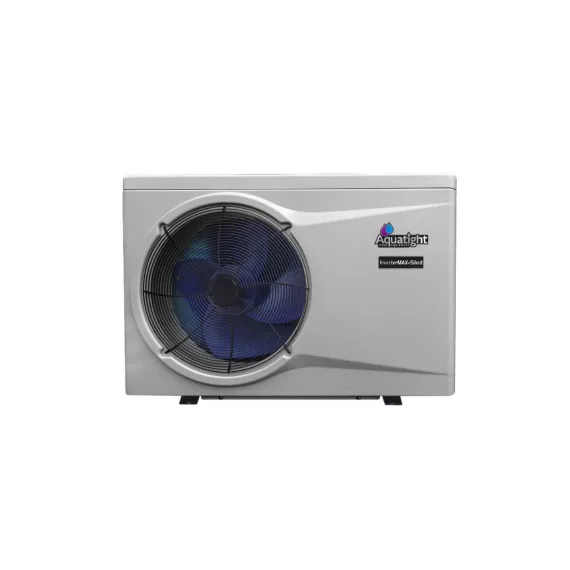

Aquatight Inverter Max Silent Heat Pump Pool Heaters

Aquatight InverterMax Silent Heat Pump Pool Heaters

When you invest in a swimming pool, you want to get the maximum use and enjoyment from it, and to do that you need to be able to swim in the pool all year round. It is possible to extend your normal swimming season and to swim all year round by keeping your pool heated with an efficient electric heat pump. Heat Pump technology uses electric power and refrigerant technology to extract latent thermal energy from the air, and transfer it to pool water running through the heater. Compared to fixed speed, ON / OFF heat pumps, heat pumps with the latest Inverter technology can vary the speed of the compressor unit to modulate its output between 0% and 100% to match the heat-demand requirements of the pool as the outside air temperature changes, and to maximise efficiency. Aquatight InverterMax heat pumps are Inverter-driven electric heaters with high efficiency and low operating noise levels, with six Silent Series models to suit a variety of residential pool sizes. The Aquatight InverterMax range also utilises R32 Gas Refrigerant which is a next-generation refrigerant designed to provide a much lower Global Warming Potential (GWP) to R22 and R140A refrigerants. Quiet Operation: When maintaining the desired pool temperature at 50% capacity, the average sound pressure of an Aquatight InverterMAX Silent Heat Pump is only 46dB(A) at 1 meter, which means your neighbours won’t even know its running. Efficiency: When maintaining the desired pool temperature at 50% capacity, the COP of an Aquatight InverterMAX – Silent is 10.2 – 11, which is significantly higher than the 5 COP of a standard On/Off Heat Pump, which means it is provides double the energy savings. Twin-Rotary DC-inverter Compressor: The InverterMax heat pump uses a modern twin-rotary compressor; a more balanced system than a single rotor compressor, which developes less vibration, less noise and more efficiency.

Features:

• Twin-rotary Mitsubishi DC Inverter
• Spiral Titanium Heat Exchanger in PVC
• Soft Start Technology helps prevent overload upon start-up
• Quiet operation
• ABS outer casing

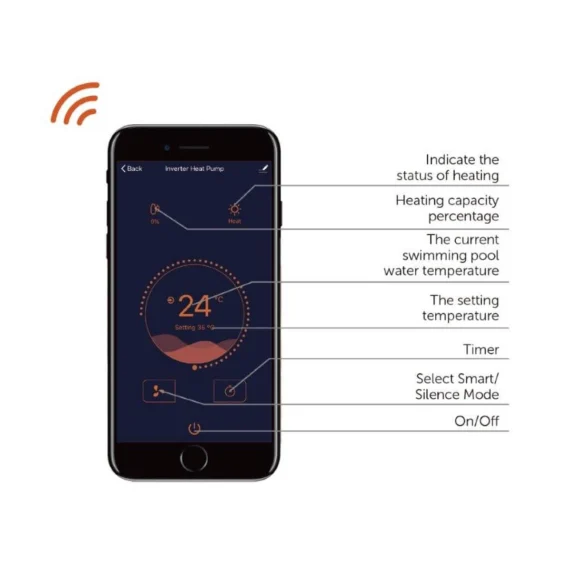

• WiFi connectivity for real time monitoring and control
• R32 Refrigerant
• Water pipe in-out size (mm): 50
• Warranty: 10 Years heat exchanger / 2 years Parts

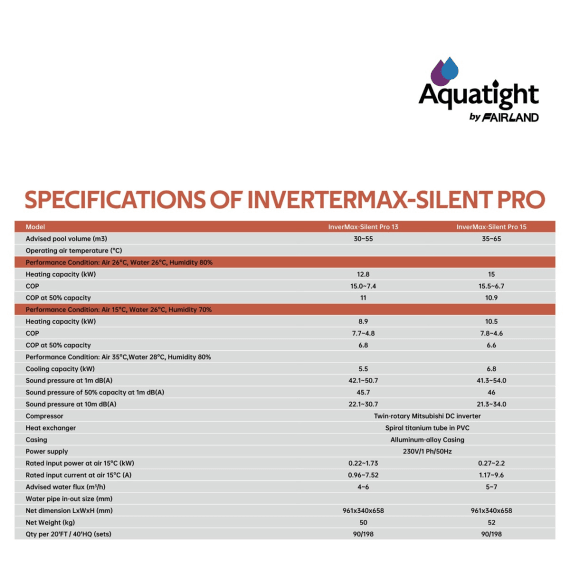

Model Specifications:

IM13 – 13kW

• Advised Pool volume (L): 30,000 – 55,000*
• Power Supply: 230V / Single phase / 50Hz
• Heating Capacity / COP at 50% Capacity:-
  • At 26°C air Temp / Water Temp to 26°C / 80% Humidity
    • 8 kW
    • COP (50%) 11
  • At 15°C air Temp / Water Temp to 26°C / 70% Humidity
    • 9kW
    • COP (50%) 6.8
  • Rated Input Current at 15°C Air (A): 0.96 – 7.52
  • Max Input Current (A): 12
  • Sound pressure at 1m dB(A): 42.1 – 50.7
  • Dimensions (mm) L x W x H: 961 x 340 x 658
  • Weight: 50kg

IM15 – 15kW

• Advised Pool volume (L): 35,000 – 65,000*
• Power Supply: 230V / Single phase / 50Hz
• Heating Capacity / COP at 50% Capacity:-
  • At 26°C air Temp / Water Temp to 26°C / 80% Humidity
    • 15 kW
    • COP (50%) 10.9
  • At 15°C air Temp / Water Temp to 26°C / 70% Humidity
    • 5kW
    • COP (50%) 6.6
  • Rated Input Current at 15°C Air (A): 1.17 – 9.6
  • Max Input Current (A): 13.5
  • Sound pressure at 1m dB(A): 41.3 – 54
  • Dimensions (mm) L x W x H: 961 x 340 x 658
  • Weight: 52kg
