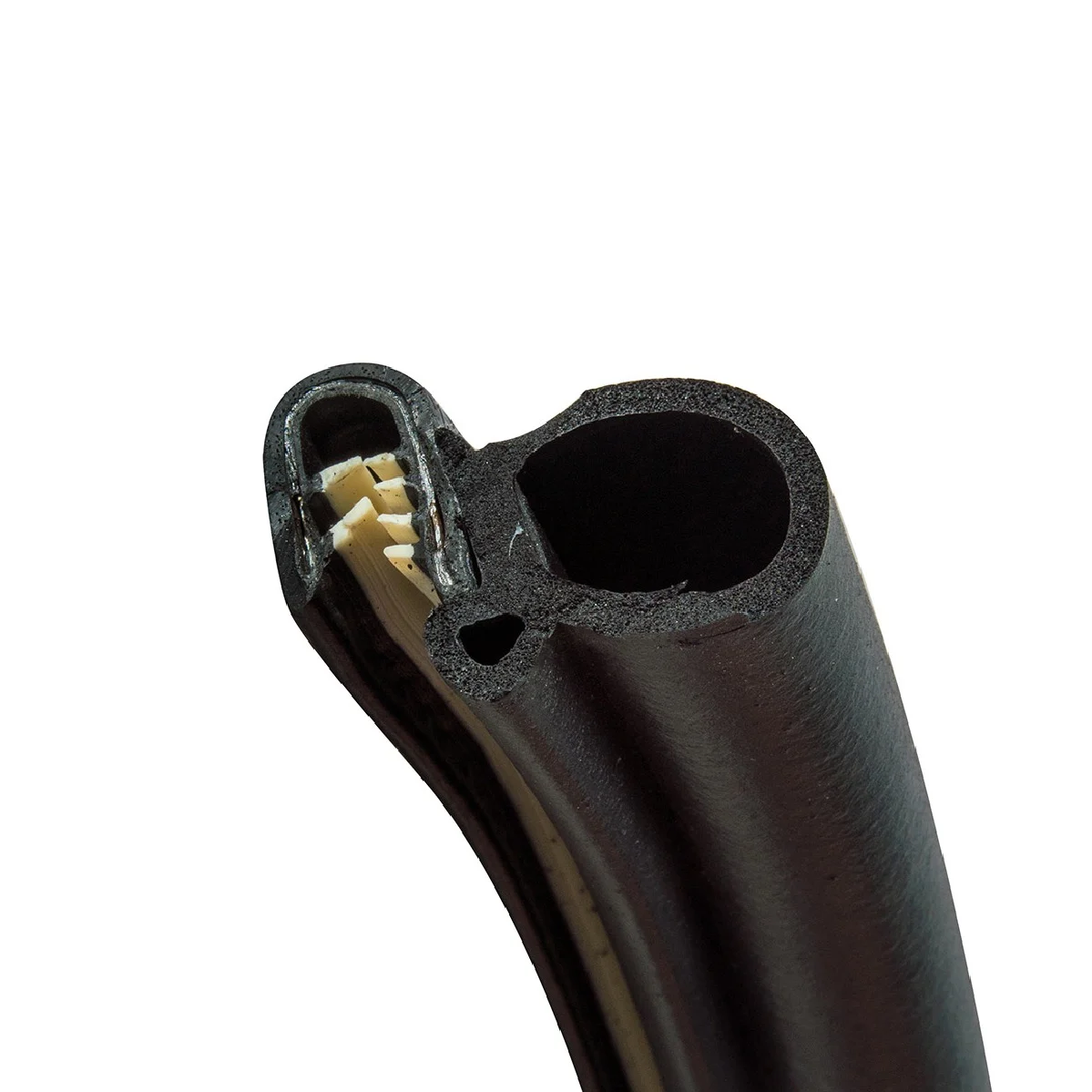

The Pinchweld with Side Bulb is a versatile sealing solution designed to protect edges and provide a secure dust and water seal for a wide range of applications. Commonly used for automotive, marine, and industrial purposes, this dual-material seal combines strength and flexibility to perform reliably in harsh environments.
The Pinchweld channel is made from durable PVC, allowing it to easily grip around metal edges to provide a firm and secure hold. The attached side bulb, made from EPDM foam rubber, compresses when the door, lid, or panel is closed, creating an effective barrier against dust, water, and air infiltration. With strong UV resistance and dependable weather performance, this seal helps extend the life of vehicle components and enclosures exposed to outdoor conditions.
Engineered for practicality, the Pinchweld with Side Bulb is easy to install and ideal for sealing vehicle doors, boots, engine bays, skylights, and other enclosures that need to stay protected from the elements.
Key Features:
• Provides reliable dust and water seal for a variety of enclosures
• Made from durable PVC and EPDM sponge rubber
• Offers protection from sharp metal edges
• Excellent UV and weather resistance for Australian conditions
• Easy to install and grips firmly around metal edges

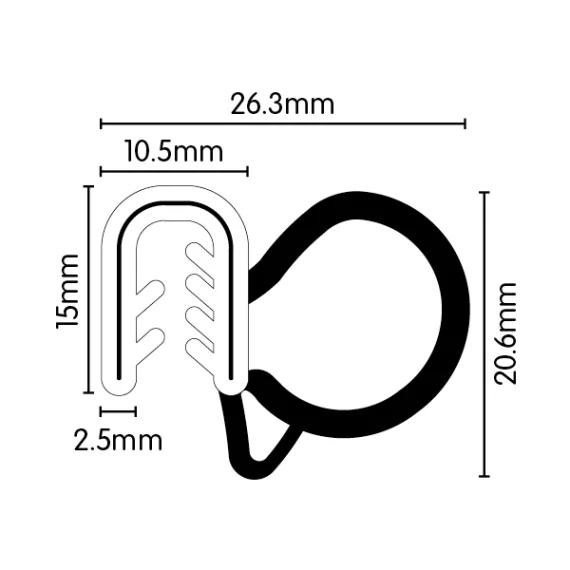

• Dimensions: 15 x 10.5mm
• Grip range: 1.0 to 3.0mm
Best Used For:
• Vehicle doors, trunks, and engine bays
• Automotive body edges and seat fittings
• Skylights, hatches, and equipment enclosures
• Marine, industrial, and recreational sealing applications
Technical Specifications:
• Material: PVC and EPDM sponge rubber
• Hardness: 65–75 Shore A
• Working Temperature: -20°C to 100°C
• UV Resistance: Very good
• Dimensions: 15 x 10.5mm
• Grip Range: 1.0 to 3.0mm
