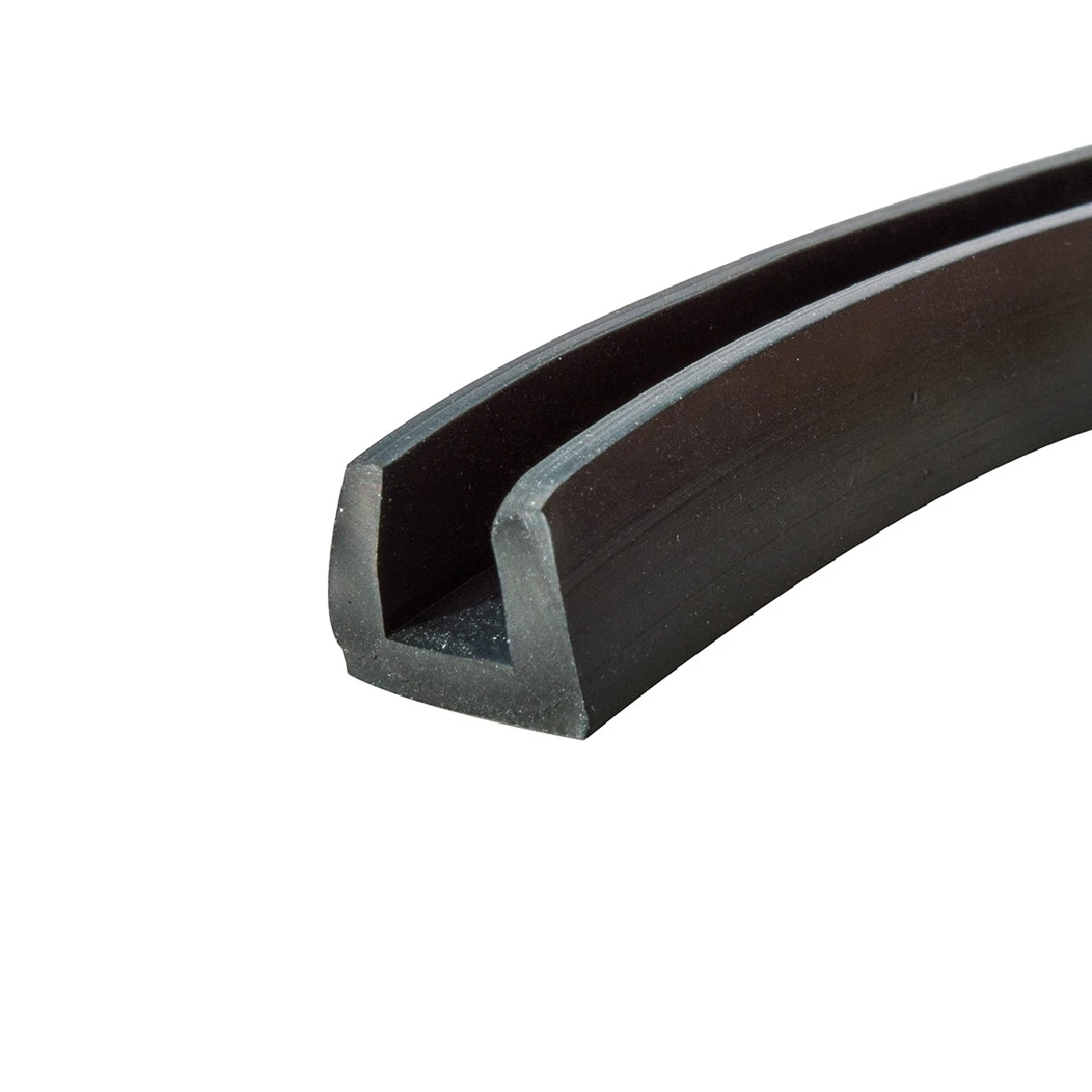

This Weather Strip U Channel is designed to protect and finish exposed metal edges on doors, lids and panels. Made from high-quality EPDM rubber, it offers excellent resistance to water absorption, ozone, dust and environmental wear. The profile helps reduce vibration, minimise noise and cover small gaps, making it a reliable edge trim solution for both trade and DIY applications.
The 12.5 mm x 11.5 mm profile provides a deeper channel, ideal for applications requiring a more secure grip on sheet metal edges. Flexible EPDM construction allows straightforward installation and on-site cutting for precise fitment. It is commonly used across cars, caravans, trailers, trucks, boats, buses, coaches, motorhomes and general engineering projects, delivering both functional protection and a clean finished appearance.
With excellent UV resistance and a wide temperature range, this U channel performs reliably in outdoor and industrial environments. Its resilient design ensures long-term durability in applications exposed to vibration, dust, moisture or mechanical wear.
Key Features:
• Durable EPDM rubber construction for long-lasting performance
• Protective edge trim for metal edges and panels
• Excellent UV resistance for outdoor applications
• Reduces vibration and edge wear
• Hardness (Shore A): 70 ± 5 for resilient sealing
• Wide temperature range: -35 C to 120 C

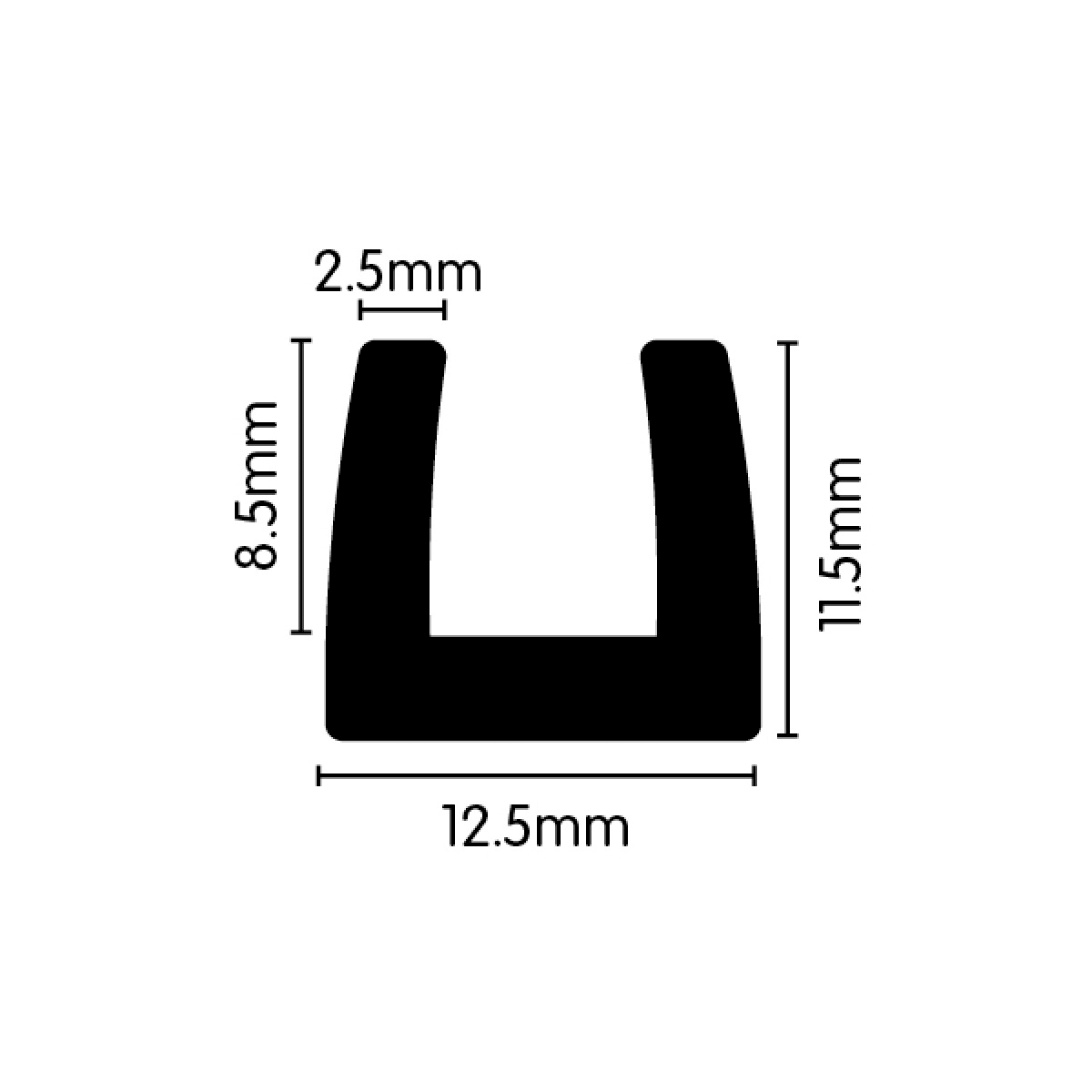

• 12.5 mm x 11.5 mm dimension for secure edge grip
• Cut to length for precise fitment
Best Used For:
• Automotive door and panel edge protection
• Caravan and trailer edge finishing
• Marine hatch and lid edge trim
• Truck and transport body applications
• General fabrication and sheet metal edges
Technical Specifications:
• Material: EPDM Rubber
• Type/Design: U Channel Edge Trim
• Dimensions/Thickness: 12.5 mm x 11.5 mm
• Hardness: Shore A 70 ± 5
• Temperature Range: -35 C to 120 C
• UV Resistance: Excellent
• Sold per metre
