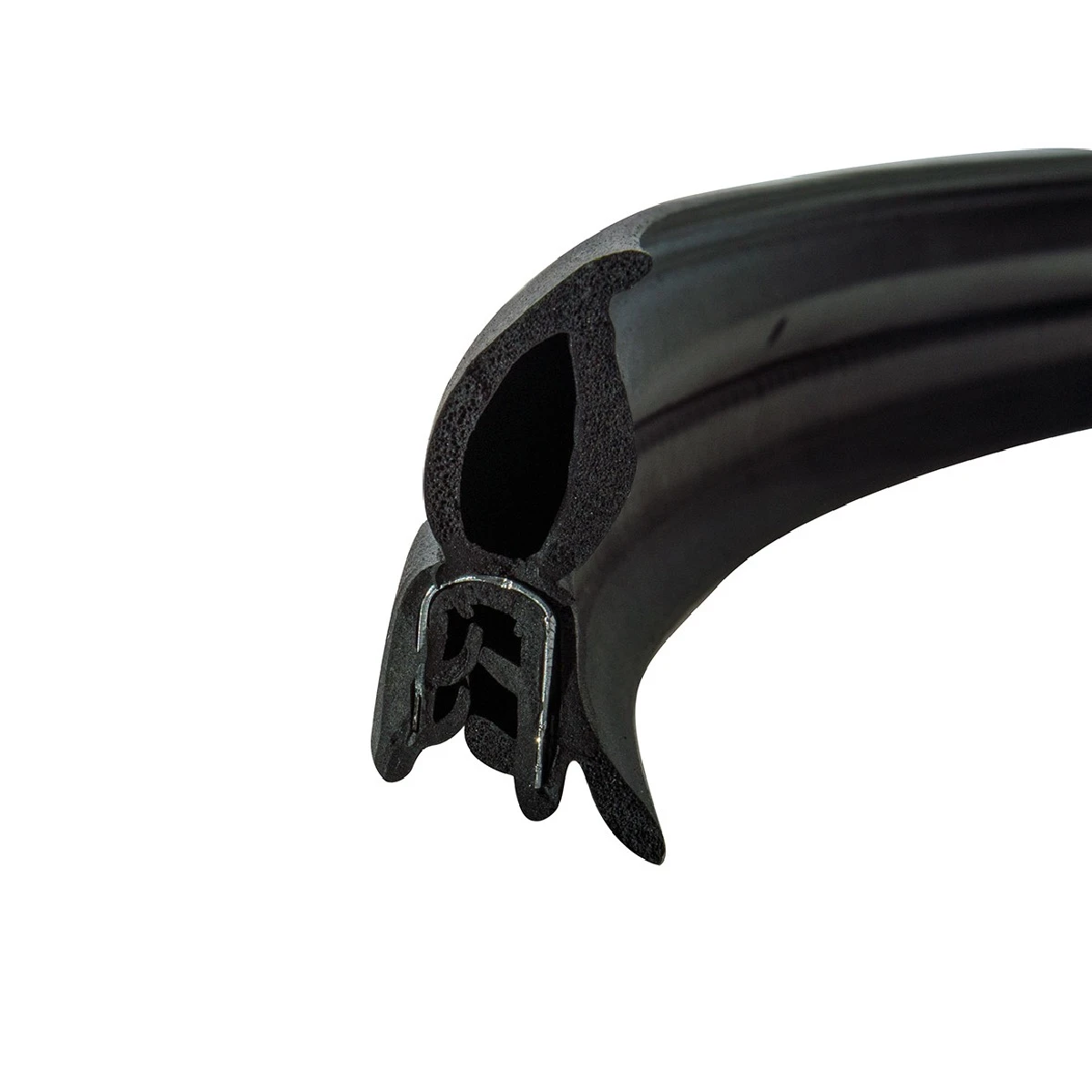

This Pinchweld with Top Bulb is a reliable sealing solution designed for doors, boots, and bonnets across automotive, transport, and industrial applications. The pinchweld channel grips securely onto metal edges, while the top-mounted EPDM bulb provides an effective seal against dust, water, and environmental ingress.
The 15.3 mm x 10 mm profile is suited to applications where a compact but durable seal is required. It is commonly used on utes, cars, trucks, and tractors, as well as caravans, camper trailers, excavators, trains, and trams. The top bulb design allows for consistent compression when doors or lids are closed, improving sealing performance in harsh conditions.
Manufactured from EPDM rubber, this seal offers excellent resistance to UV exposure, ozone, weathering, and temperature extremes. It maintains flexibility over time and delivers long-term sealing performance in demanding environments.
Key Features:
• Multi-purpose seal against dust and water
• EPDM rubber construction
• Top bulb design for effective compression sealing
• Secure grip onto metal edges
• Excellent UV resistance for outdoor use
• Hardness (Shore A): 70 ± 5
• Temperature range: -35 C to 120 C

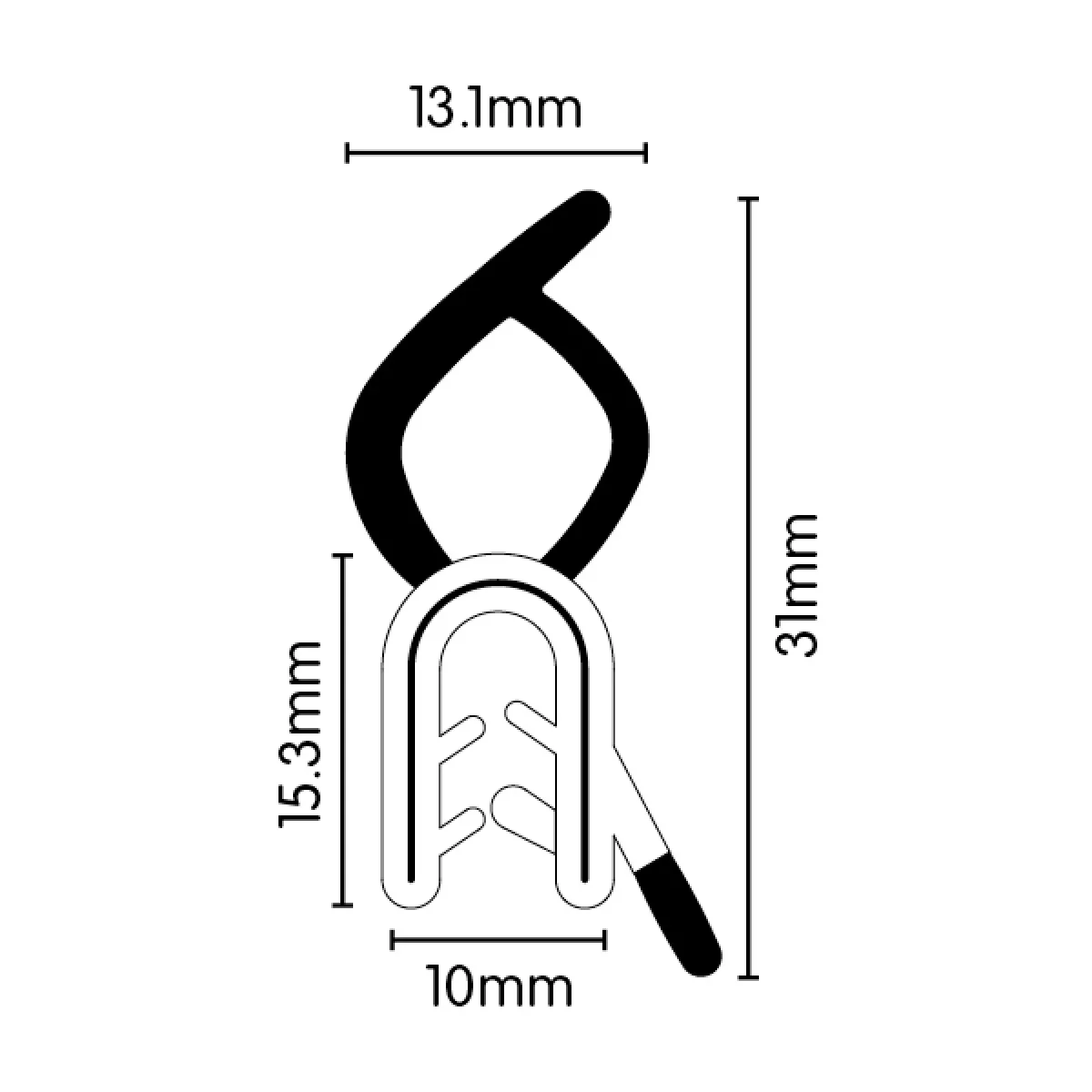

• 15.3 mm x 10 mm profile
Best Used For:
• Automotive doors, boots, and bonnets
• Caravan and camper trailer sealing
• Truck and machinery enclosures
• Rail and transport applications
• Dust and water sealing in harsh environments
Technical Specifications:
• Material: EPDM Rubber
• Type/Design: Pinchweld with top bulb seal
• Dimensions/Thickness: 15.3 mm x 10 mm
• Hardness: Shore A 70 ± 5
• Temperature Range: -35 C to 120 C
• UV Resistance: Excellent
