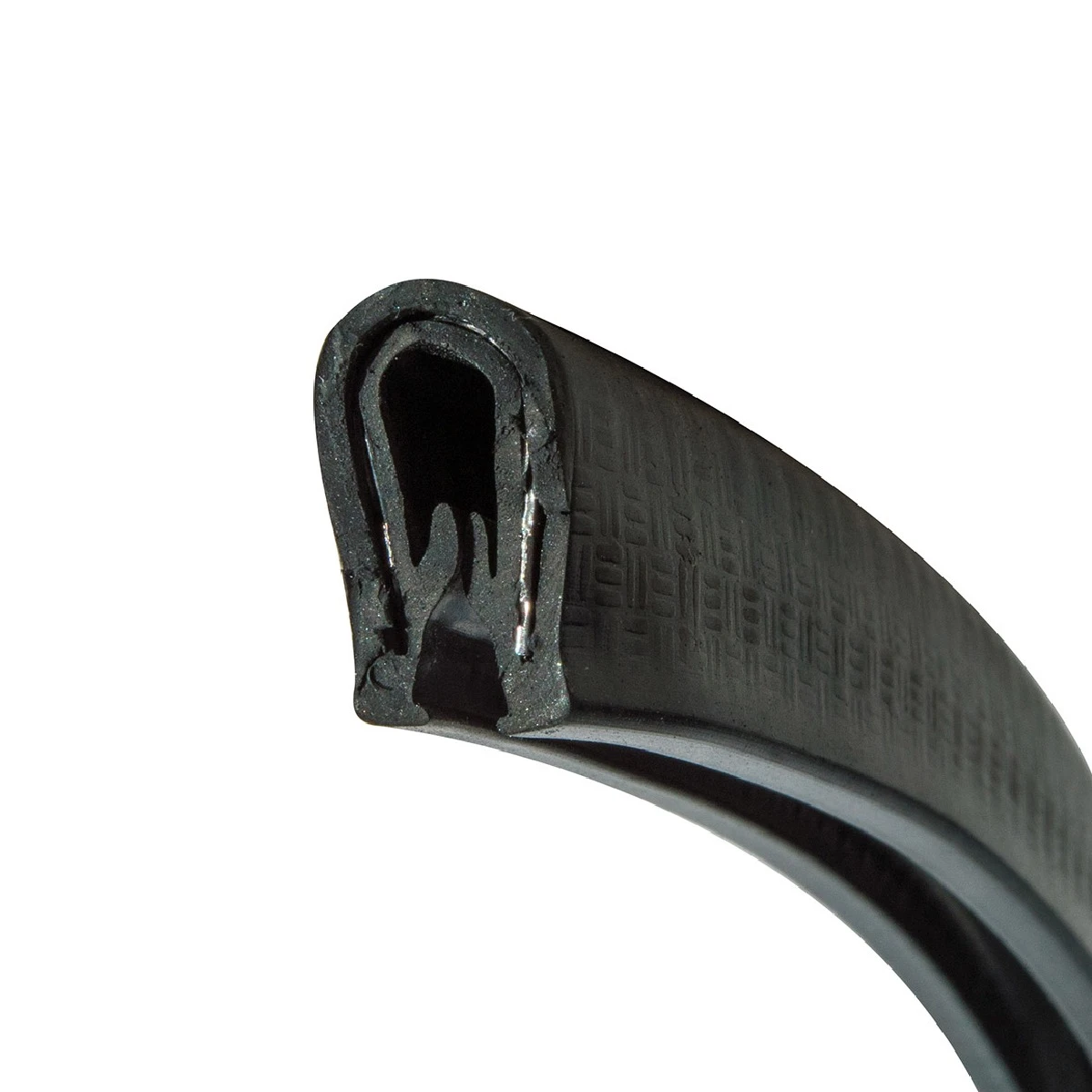

PVC Rubber Pinchweld - 17mm x 10.5mm
This 2-Pronged Pinchweld is a durable edge trim solution designed to protect exposed metal edges while providing a secure seal. It features a flexible PVC U channel combined with an EPDM rubber bulb, along with an internal gripping tongue to ensure a firm hold across a range of edge thicknesses.
The 17 mm x 10.5 mm profile provides both edge protection and a compressible sealing function, making it suitable for automotive, machinery, and general fabrication applications. It is commonly used to cover sharp edges on toolboxes, carts, shelves, panels, and enclosures, improving safety and finish. The EPDM rubber bulb offers cushioning and sealing against dust, moisture, and vibration.
With very good UV resistance and a reliable operating temperature range, this pinchweld is suitable for both indoor and outdoor use. The flexible PVC carrier allows for easy installation around curves and irregular shapes while maintaining a secure grip on metal edges.
Key Features:
• Protective edge trim with sealing bulb
• EPDM rubber bulb with flexible PVC carrier
• Internal gripping tongue for secure fit
• Grip range: 1.0 mm to 4.0 mm
• Very good UV resistance for outdoor use
• Temperature range: -20 C to 100 C

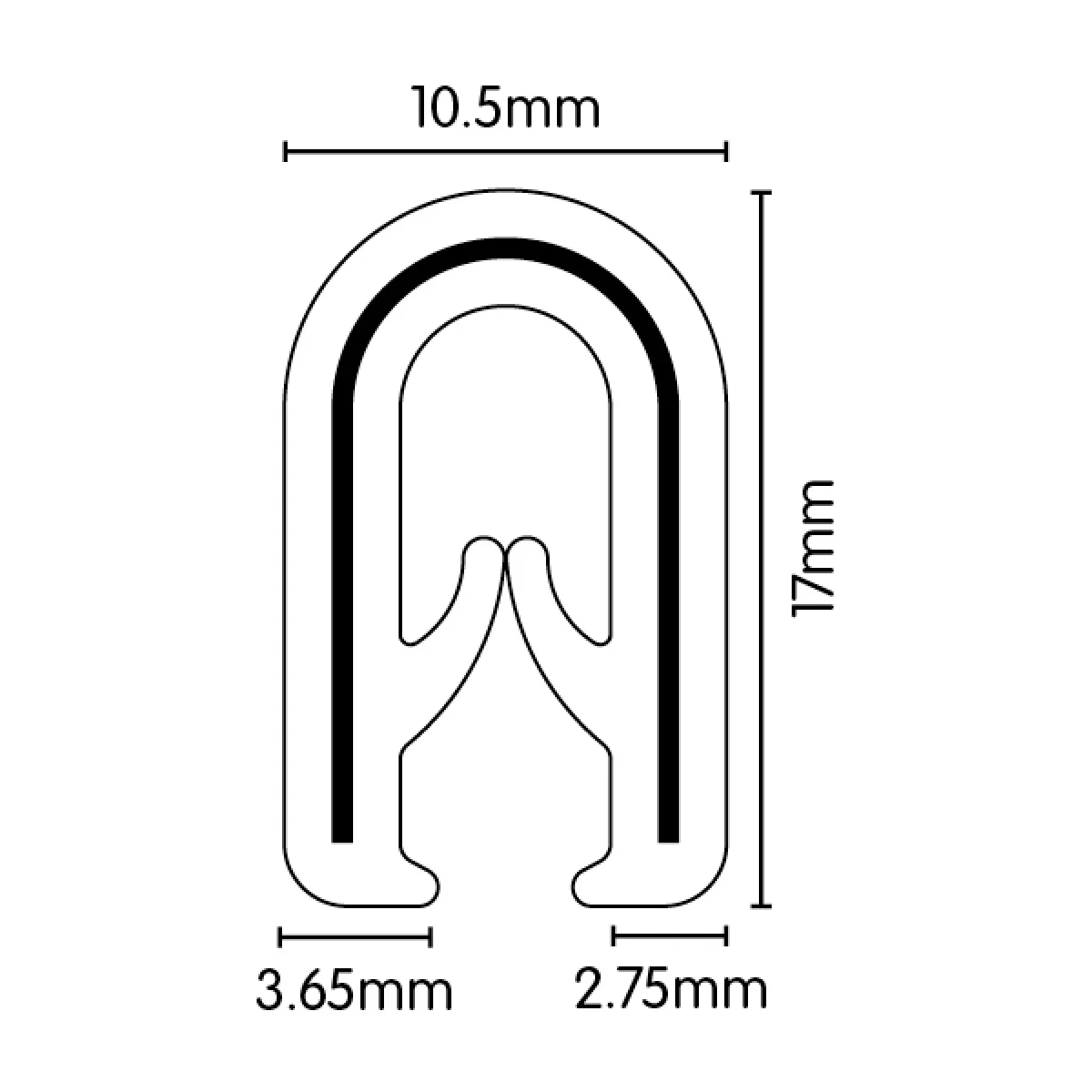

• 17 mm x 10.5 mm profile
• Protects against sharp edges and impact
Best Used For:
• Automotive door and panel edge protection
• Toolboxes, carts, and shelving edges
• Machinery guards and enclosures
• Marine and trailer applications
• General fabrication and safety edging
Technical Specifications:
• Material: EPDM Rubber with PVC carrier
• Type/Design: 2-Pronged Pinchweld with bulb seal
• Dimensions/Thickness: 17 mm x 10.5 mm
• Grip Range: 1.0 mm to 4.0 mm
• Temperature Range: -20 C to 100 C
• UV Resistance: Very Good
