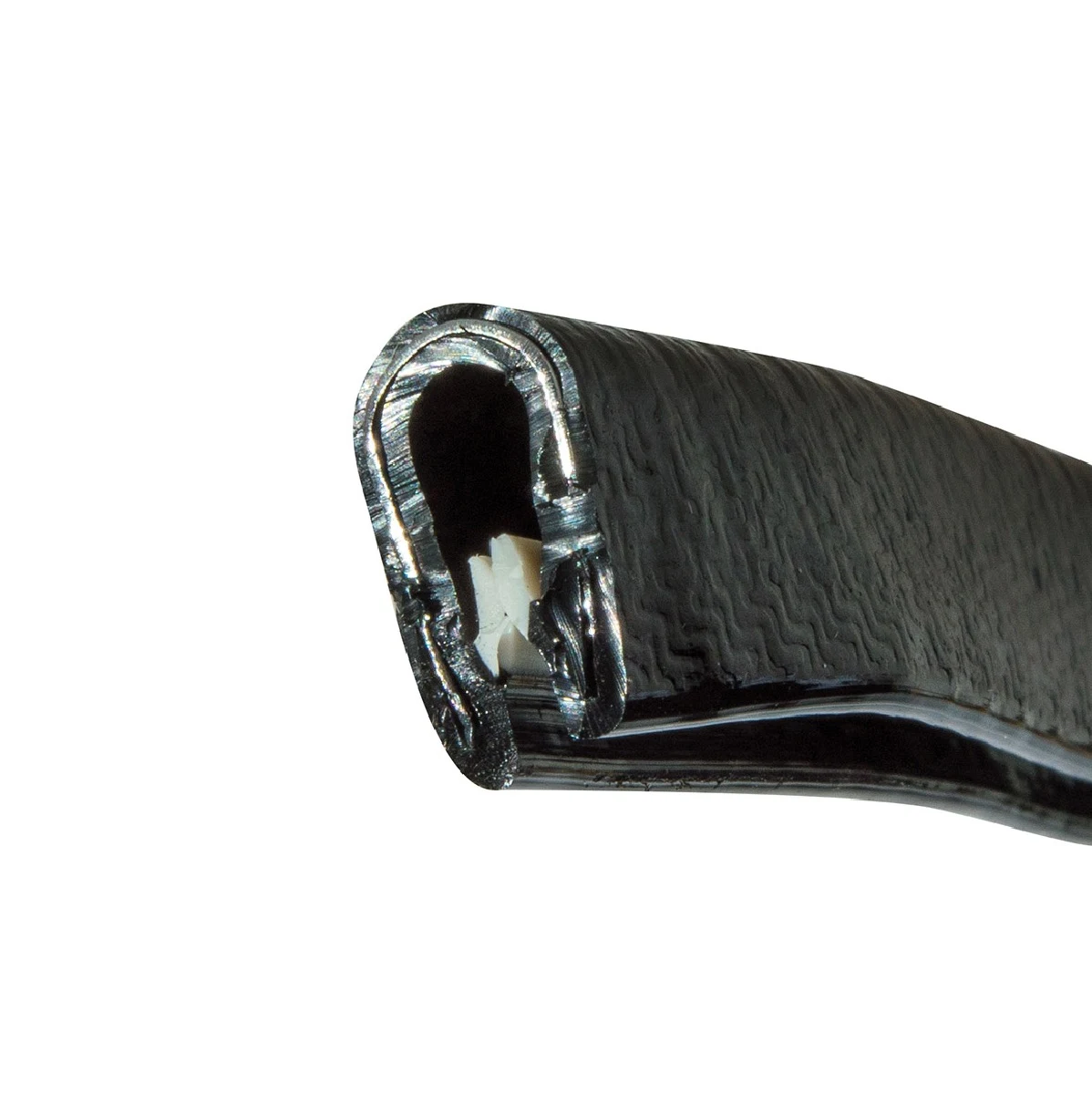

This PVC Pinchweld is a practical edge protection solution designed to cover and protect exposed metal edges in automotive, machinery, and general fabrication applications. Manufactured from flexible PVC with an internal gripping tongue, it provides a secure fit across a range of edge thicknesses while improving safety and finish.
The 13.5 mm x 9 mm profile is suited to protecting sharp edges on toolboxes, carts, shelves, panels, and enclosures. It delivers a clean, professional edge while reducing the risk of damage or injury. The flexible PVC construction allows for easy installation around straight runs and gentle curves without compromising grip.
With very good UV resistance and a reliable working temperature range, this pinchweld is suitable for both indoor and outdoor use. It is a cost-effective solution for trades, workshops, and general industrial use where edge protection is required without the need for sealing.
Key Features:
• Protective edge trim for sharp metal edges
• Flexible PVC construction
• Internal gripping tongue for secure fit
• Grip range: 1.0 mm to 2.5 mm
• Very good UV resistance for outdoor use
• Hardness (Shore A): 65 to 75
• Temperature range: -20 C to 100 C

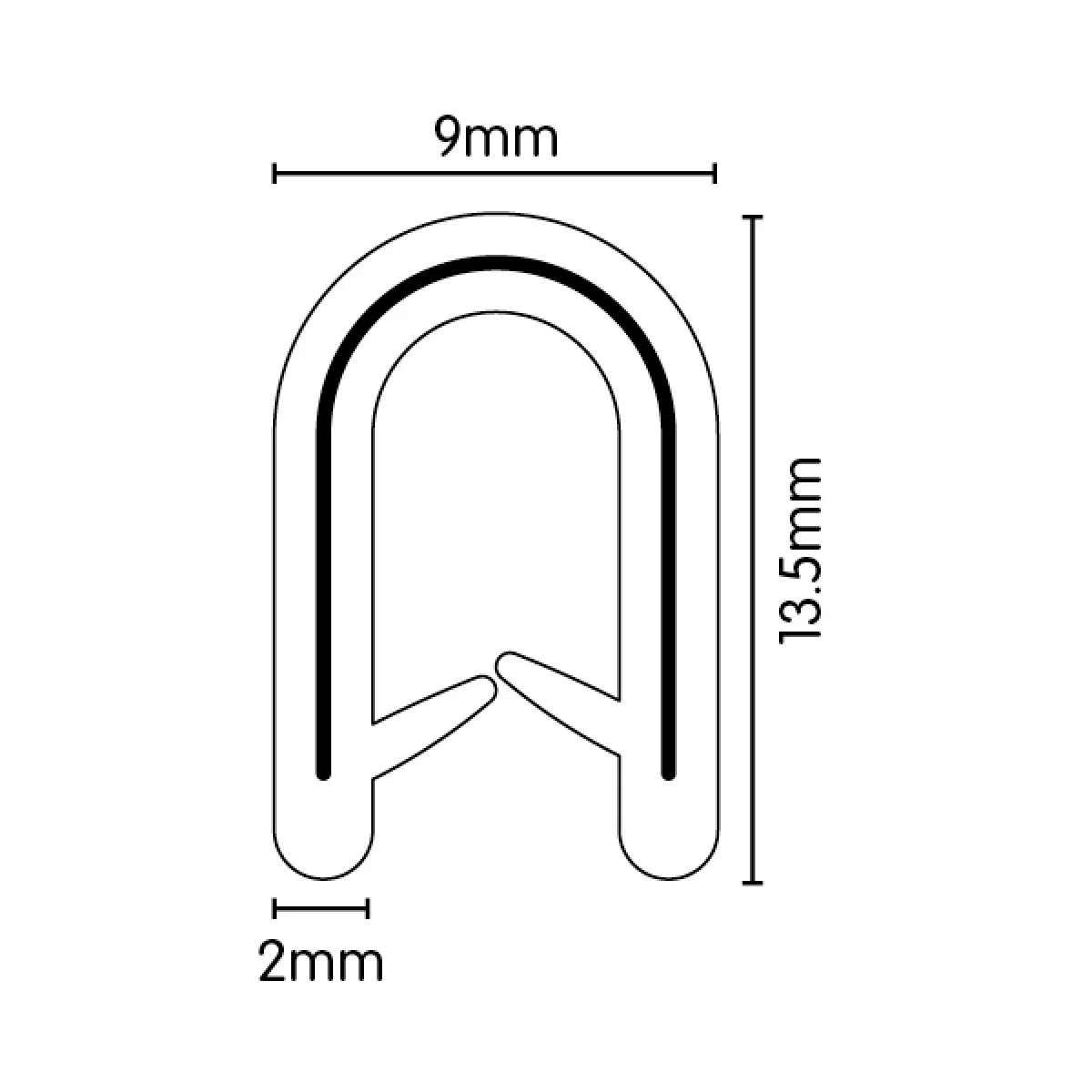

• 13.5 mm x 9 mm profile
Best Used For:
• Toolboxes, carts, and shelving edges
• Automotive panels and metal edges
• Machinery guards and enclosures
• Workshop and fabrication projects
• General edge protection and safety finishing
Technical Specifications:
• Material: PVC
• Type/Design: Pinchweld edge trim
• Dimensions/Thickness: 13.5 mm x 9 mm
• Grip Range: 1.0 mm to 2.5 mm
• Hardness: Shore A 65 to 75
• Temperature Range: -20 C to 100 C
• UV Resistance: Very Good
