This Universal Pinchweld features a PVC U-channel strip combined with an EPDM rubber bulb and gripping tongue, providing secure fitting and edge protection. Suitable for automotive, machinery, and industrial applications, it safeguards sharp metal edges while providing a clean, professional finish.
The 17 mm x 11 mm profile in white is ideal for toolboxes, carts, shelving, and panels, reducing the risk of damage or injury. Flexible PVC construction and a gripping tongue allow installation over a range of edge thicknesses, and the EPDM rubber bulb offers impact resistance and cushioning.
With very good UV resistance and a temperature range of -20 C to 100 C, this pinchweld performs well in both indoor and outdoor environments.
Key Features:
• Protective edge trim for sharp metal edges
• EPDM rubber bulb for impact resistance
• Flexible PVC U-channel for easy installation
• Grip range: 2.0 mm to 5.0 mm
• UV resistance: Very Good
• Temperature range: -20 C to 100 C
• Colour: White
• Dimensions: 17 mm x 11 mm
Best Used For:
• Toolboxes, carts, and shelving edges
• Automotive panels and machinery guards
• Industrial enclosures and workshop applications
• General edge protection and safety finishing
Technical Specifications:
• Material: EPDM Rubber and PVC
• Type/Design: Universal pinchweld edge trim

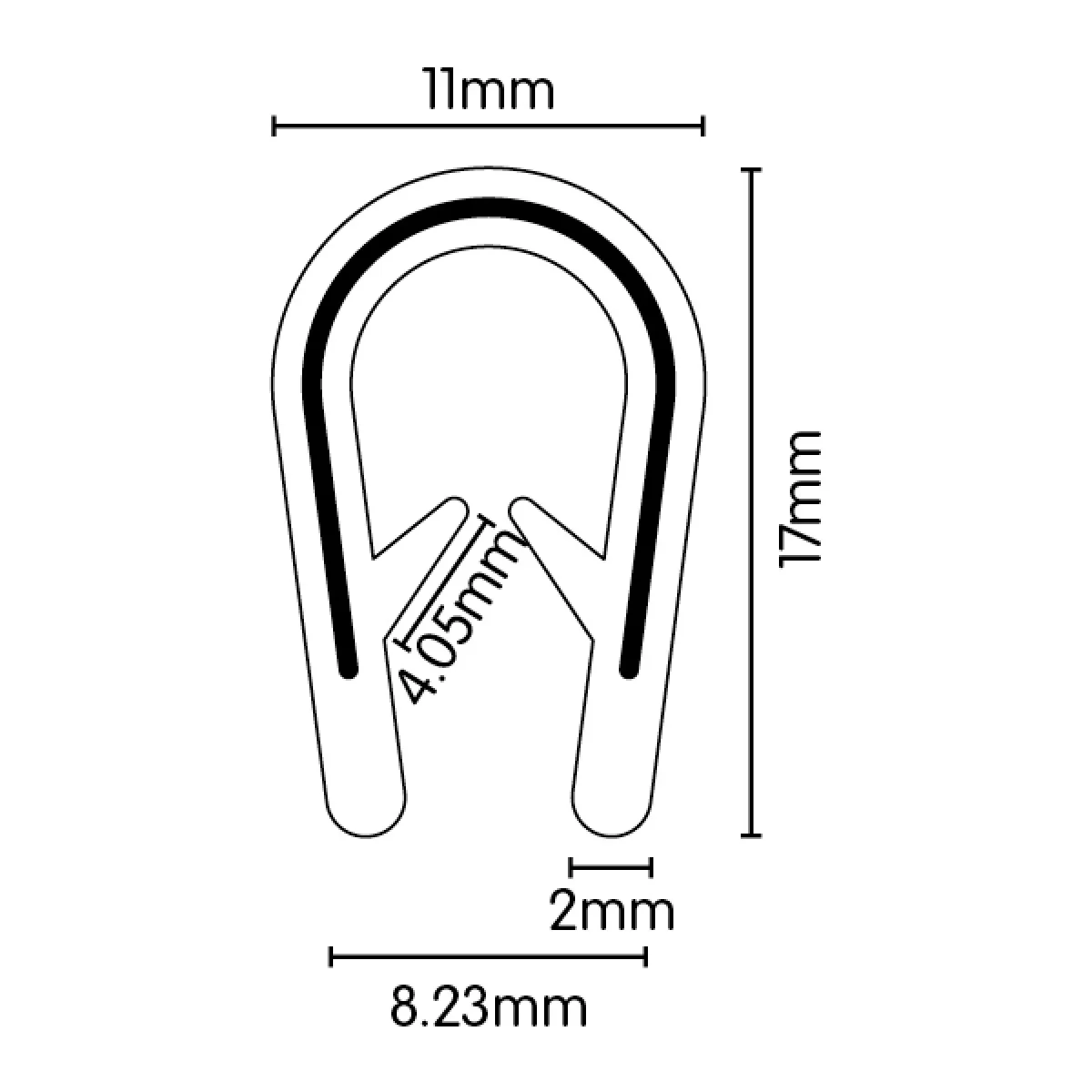

• Dimensions/Thickness: 17 mm x 11 mm
• Grip Range: 2.0 mm to 5.0 mm
• UV Resistance: Very Good
• Temperature Range: -20 C to 100 C
