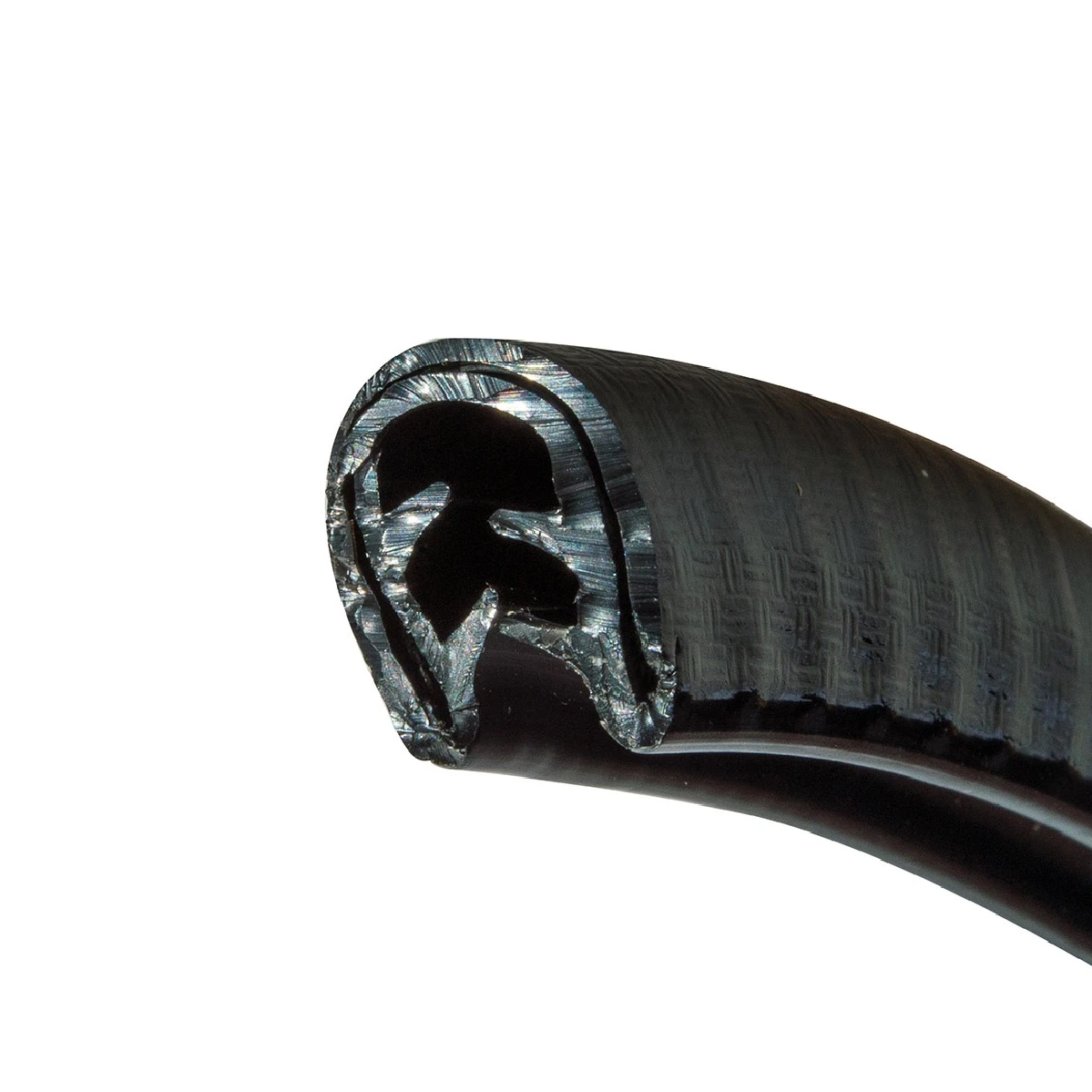

This Medium Pinchweld combines a PVC U-channel strip with an EPDM rubber bulb and gripping tongue for secure fitting. It provides reliable protection for sharp edges in automotive, machinery, and general industrial applications. Ideal for toolboxes, carts, shelves, and other surfaces, it also acts as a multi-purpose seal against dust and water.

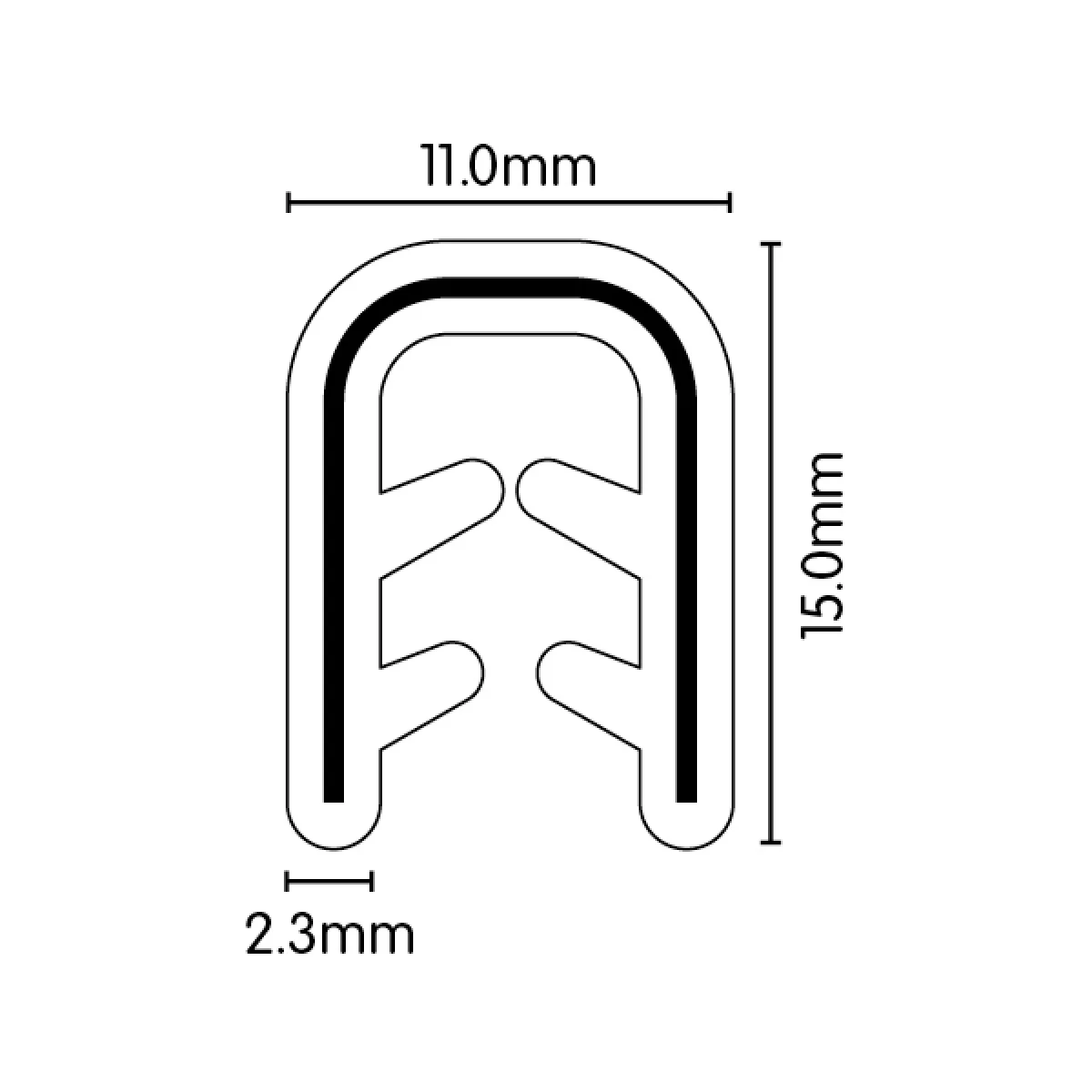

The 15 mm x 11 mm black profile features a wire cage for added flexibility, excellent UV resistance, and a temperature range of -20 C to 100 C, ensuring durability in both indoor and outdoor environments.
Key Features:
• Multi-purpose seal against dust and water
• EPDM rubber with PVC U-channel
• Dimension: 15 mm x 11 mm
• UV resistance: Excellent
• Hardness (Shore A): 70 ± 5
• Temperature range: -20 C to 100 C
• Wire cage for increased flexibility
• Grip range: 1.0 - 3.0 mm
Best Used For:
• Automotive door, boot, and bonnet edges
• Machinery and equipment guards
• Toolboxes, carts, and shelving edges
• General edge protection and sealing applications
Technical Specifications:
• Material: EPDM Rubber and PVC
• Type/Design: Medium pinchweld edge trim
• Dimensions/Thickness: 15 mm x 11 mm
• Hardness (Shore A): 70 ± 5
• UV Resistance: Excellent
• Temperature Range: -20 C to 100 C
