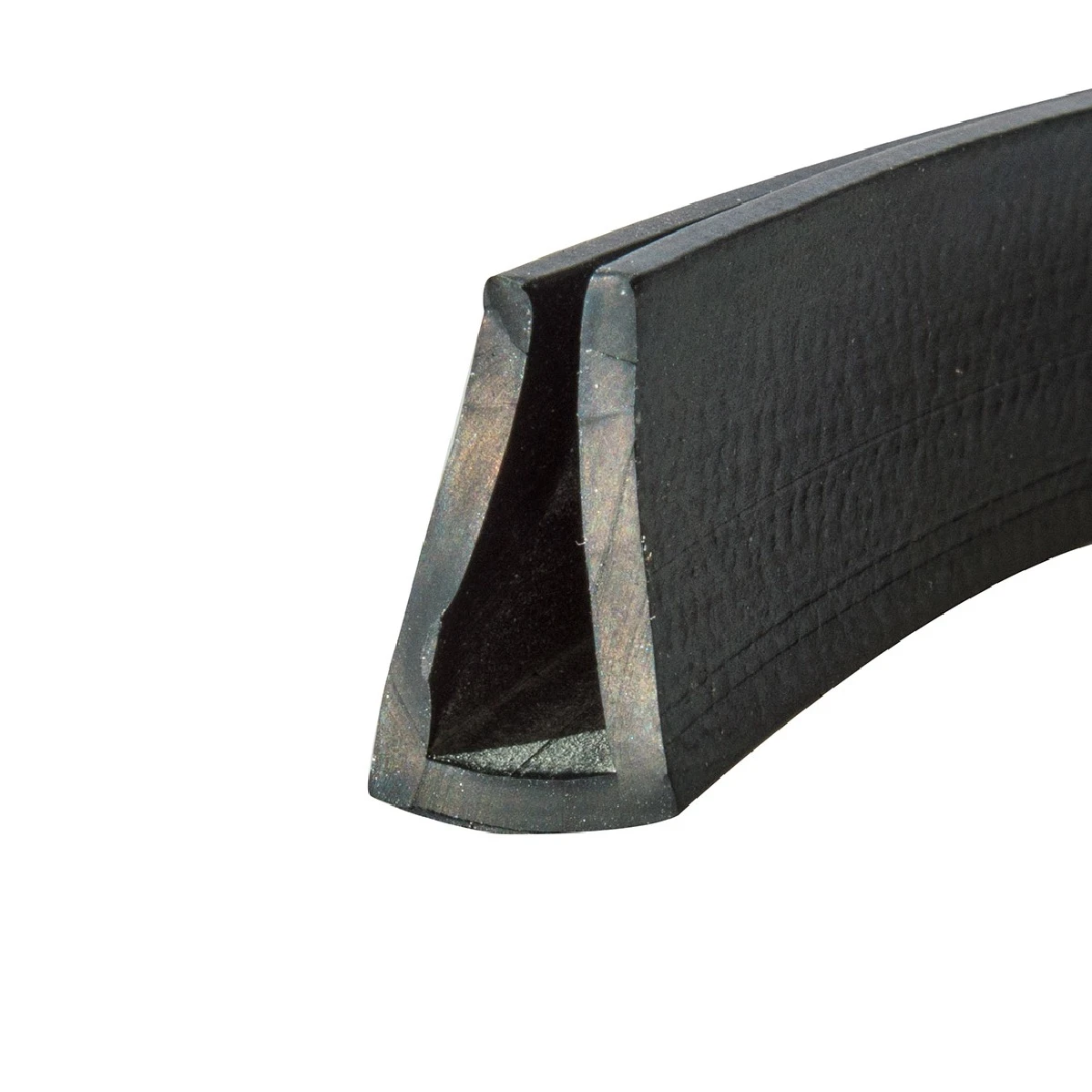

This Weather Strip U Channel is designed to protect and finish exposed metal edges on doors, lids and panels. Constructed from durable EPDM rubber, it provides excellent resistance to water absorption, ozone, dust and environmental wear. The profile helps reduce vibration, minimise noise and cover small gaps, delivering a reliable edge protection solution for both trade and DIY applications.
The 17 mm x 10 mm profile offers a wider channel, suitable for applications requiring a deeper or broader grip on sheet metal edges. Its flexible EPDM construction allows straightforward installation, and it can be cut to length on site for precise fitment. This edge trim is commonly used across cars, caravans, trailers, trucks, boats, buses, coaches, motorhomes and general engineering projects, providing both functional sealing and a clean finished appearance.
With excellent UV resistance and a broad temperature range, this U channel performs reliably in outdoor and industrial environments. Its resilient design ensures long-term durability where vibration, dust, moisture or mechanical wear may occur.
Key Features:
• Durable EPDM rubber construction for long-lasting performance
• Protective edge trim for metal edges and panels
• Excellent UV resistance for outdoor applications
• Reduces vibration and edge wear
• Hardness (Shore A): 70 ± 5 for resilient sealing
• Wide temperature range: -35 C to 120 C
• 17 mm x 10 mm dimension for deep or wide edge coverage
• Cut to length for precise fitment
Best Used For:
• Automotive door and panel edge protection
• Caravan and trailer edge finishing
• Marine hatch and lid edge trim
• Truck and transport body applications
• General fabrication and sheet metal edges
Technical Specifications:
• Material: EPDM Rubber
• Type/Design: U Channel Edge Trim

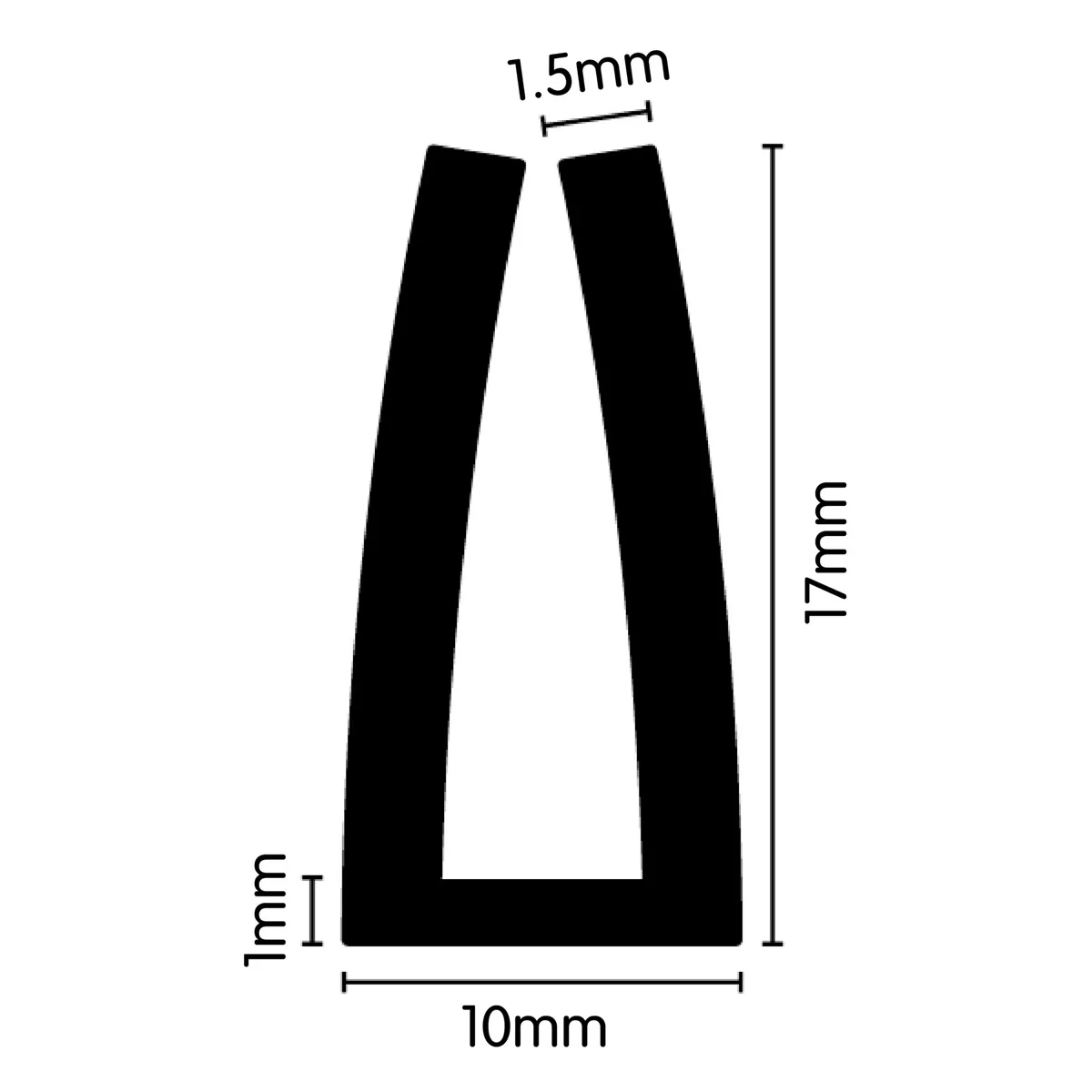

• Dimensions/Thickness: 17 mm x 10 mm
• Hardness: Shore A 70 ± 5
• Temperature Range: -35 C to 120 C
• UV Resistance: Excellent
• Sold per metre
